Now >> JS01 Evaporation Material/Coating Material

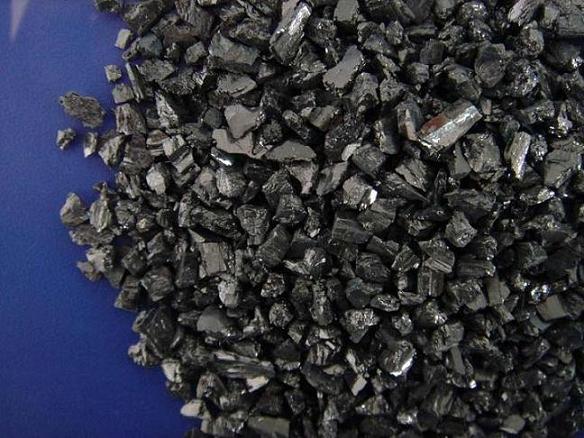

JS01 Crystal Evaporation Material is the high refractive index Mixture researched and developed by our company independently with patent protection. It is applied for the coating of antireflection films and multilayer. The product has the following characteristics:



■  Uniform components, large density and high purity;

■  Visible to near-infrared waveband without absorption, 360nm - 7000nm high transmittance;

■  Melt completely before deposition;

■  No deflation and splash in the melting process;

■  Uniform film with consistent thickness.



Basic Properties:

 Refractive Index (550nm)
 Color
 Purity
 Melting Point
 Density
 Evaporation Temperature
 Product Form
 2.10
  Black
 99.95%
 1800ºC
 5.90g/cm3
 2200-2300°C
  0.4-4.0mm




The test report of JS01 Crystal Evaporation Material

1.   The optical properties of single film:

Evaporation conditions:

Starting vacuum degree
Oxygen partial pressure
Deposition rate
Substrate temperature
Film thickness
Substrate
Vacuum coating machine
3×10-3Pa
8×10-3Pa
4A/S
350℃
4.5KA
Bk7
OPTORUN Super AR-1300





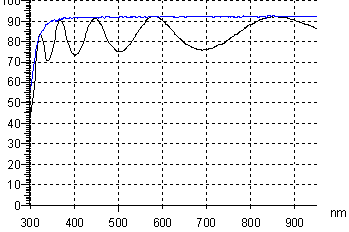

Fig.1 The transmittance spectra typical for films of JS01 Crystal Evaporation Material



Wavelength(nm)
n
k
364.85
2.16622
0.00033
398.32
2.11311
0.00058
441.85
2.07821
0.00046
498.09
2.05059
0.0003
575.26
2.03796
0.00013
682.99
2.02716
0.00035
853
2.00849
0.00114

Tab.1 Data on refractive index and absorption index calculated from transmission and reflection data

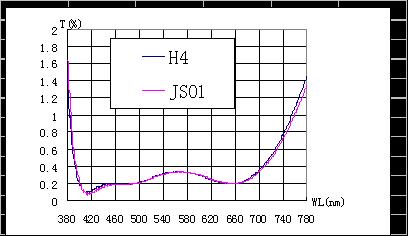

2.  Evaporation film spectral curve of AR Mutilayers (seven) comparison chart between JS01 and H4 evaporation Material






3. AR film reliability test

Project
Conditions
Results
Environmental test
Lasting: 48H
Through test, there is no mist and devitrification. The spectral curve has no apparently change. Both appearance and function are ok.
Temperature: 80℃∽-20℃
Humidity: 75%
Circle index: 4
Film toughness test
(after the environmental
test)
Moisten stencil paper with acetone. Wipe back and forth at the same place for 25 times with 1-2kg
strength
The film doses not peel off. Regard as ok.
Make the high-strength rubber belt closely cling to the lens surface. Quickly tear out the belt in 90 degree. Repeat it at the same place for 3 times.

4. Conclusion:

    In the vapor deposition of JS01 Crystal Evaporation Material, there is no spattering. And Material outgassing is minimal. The refractive index is stable. It has good repetitiveness. This material is suitable for stable batch production of the AR film.
